Numerical - Inductor value for prototype HPF 'T' section

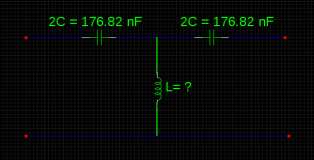

Q.  For the design of prototype high pass filter T section, what would be the value of inductor if design impedance and cut-off frequency are 600 ohm and 1500 Hz respectively?
- Published on 06 Oct 15
Prototype


a. 19.89 mH
b. 31.83 mH
c. 40.13 mH
d. 51.83 mH

ANSWER: 31.83 mH
